| Machine Type |

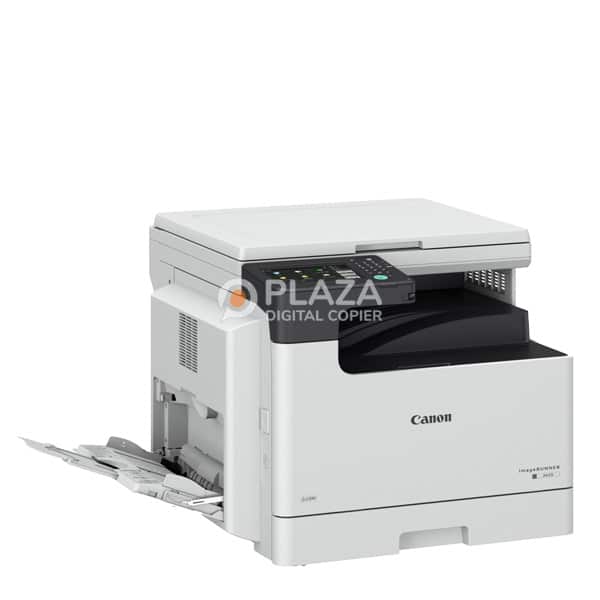

A3 Monochrome Laser Multifunctional |
| Core Functions |
Print, Copy, Scan, Send and Optional Fax |
| Control Panel |
7 inch TFT LCD WVGA color Touch panel |
| Memory |
Standard: 2.0GB RAM |
| Storage |
Use area: 30GB (eMMC) |
| Interface Connection |
NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)OTHERS
Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1 |
| Paper Supply Capacity (A4, 80gsm) |
Standard: 330 sheets
Maximum: 580 sheets (with Cassette Feeding Module-AK1) |
| Paper Output Capacity (A4, 80 gsm) |
Standard: 250 sheets
Maximum: 250 sheets |
| Finishing Capabilities |
Standard model: Collate, Group |
| Supported Media Types |
Multi-purpose Tray:
Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Label, Pre-punched, EnvelopePaper Cassette:
Plain, Recycled, Color, Pre-punched |
| Supported Media Sizes |
Multi-purpose tray:
Standard size: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size/Free Size: Min.95.0 x139.7 mm up to 297.0 x431.8 mmPaper Cassette:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R |
| Supported Media Weights |
Multi-purpose tray: 60 to 157 gsm
Paper Cassettes: 64 to 90 gsm
Duplex: 60 to 90 gsm |
Warm-up Time
(Quick start mode:ON) |
4 Seconds or Less*1
From Sleep Mode: 10 seconds or less
12 Seconds or Less*2 |
| Dimensions (W x D x H) |
With Platen Cover-AA1: 627 x 665 x 516 mm
With DADF-AZ2: 627 x 692 x 616 mm |
| Installation Space (W x D) |
1065 x 1285 mm |
| Weight |
With Platen Cover-AA1: Approx. 34.9 kg including toner
With DADF-AZ2: Approx. 39.9 kg including toner |
